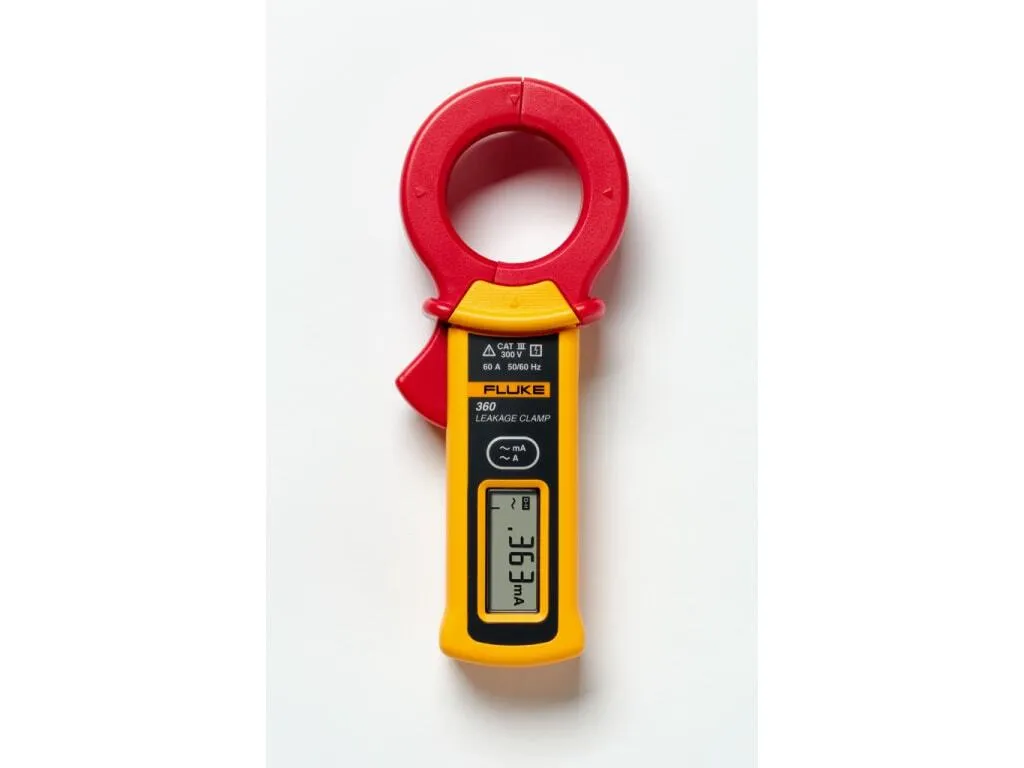

Fluke 360 Leakage clamp

High‑sensitivity leakage current measurement for troubleshooting earth faults

The Fluke 360 is a specialised leakage clamp meter designed for detecting low‑level AC leakage currents in electrical installations. With high sensitivity, low‑noise measurement, and excellent shielding, it’s ideal for pinpointing insulation breakdown, earth‑leakage faults, and nuisance RCD tripping.

Key Features

• Leakage current measurement down to 3 mA
• High‑accuracy AC current measurement
• Excellent shielding to minimise electrical noise
• True‑RMS performance
• 30 mm jaw opening
• CAT III 600 V safety rated
• Lightweight, rugged handheld design

Core Specifications

• Current ranges:
  • 3 mA to 30 mA
  • 30 mA to 300 mA
  • 300 mA to 30 A
• Accuracy: ±(2% + 5 digits) typical
• Resolution:
  • 0.001 A (low range)
• Jaw size: 30 mm
• Frequency response: 40–400 Hz
• Safety rating: CAT III 600 V
• Weight: ~200 g

Recommended Pairings

• Fluke 1587 Insulation Multimeter – insulation + DMM testing
• Fluke 1555 10 kV Insulation Tester – high‑voltage insulation checks
• Fluke 1730 Power Logger – full electrical system analysis
• Fluke 376 FC Clamp Meter – high‑current diagnostics

Hiring with Measurements101
Booking is simple: select your dates, choose your equipment, and check out. Once your order is placed, we’ll be in touch within the hour to organise delivery.
Not sure if this is the right tester for your job? Give us a call anytime — we’re always happy to help you get the right tool.

*Specifications are indicative only and may vary in practice. Please confirm suitability for your application.*
